🔧 PRODUCT FEATURES
🔹 Engine

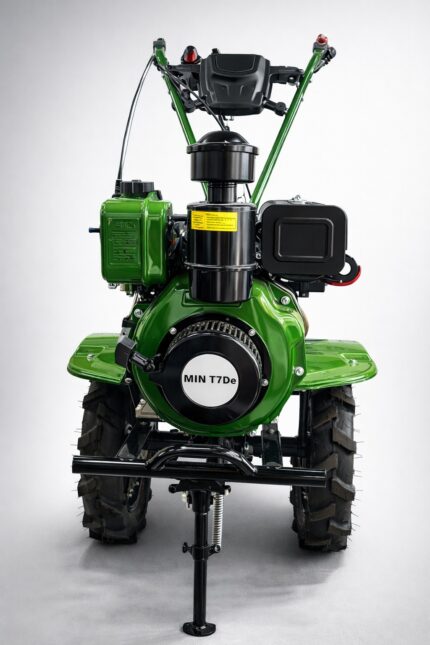

Make: Kirloskar Oil Engines Ltd.
Model: MIN T 9 Diesel
Type: Single Cylinder, Air Cooled, Diesel Engine
Power: 7.5 HP
Rated RPM: 3000
Displacement: 418 cc
Bore × Stroke: 86 × 72 mm
High Idle RPM: 3150
Weight: 125 kg
Starting: Recoil (Manual)
Engine Oil: 3.5 Litres (15W40)
🔹 Transmission
• Gearbox: Combination of Constant & Sliding Mesh Gears
• Speeds: 3 (2 Forward + 1 Reverse)
• Clutch: Friction Multi Disc
🔹 Rotary Tiller
• Rotation: Fast – 120 RPM | Slow – 70 RPM
• Blades: 38 Nos.
• Blade Type: Dryland Blades
🔹 Overall Specifications
• Tilling Width: 1350 mm
• Tilling Depth: >100 mm
• Working Speed: 0.36 – 1.08 km/h
• Tyre Size: 4.00 – 8 (2 Ply)
• Dimensions (L×W×H): 1750 × 1350 × 900 mm
• Handle Adjustment:
-
Horizontal: 270°
-
Vertical: 180°
